Sprinter 144 High Roof – AutoPly 3144V
$689.00 – $828.00
PRE-CUT INSULATION KIT WITH SELF-ADHESIVE
KIT PART NUMBERS
• 3144V – R2 FiberPly 1/2-inch material thickness
• 3144V-1 – R4+ FiberPly 1-inch material thickness
CONTENTS
• Ceiling, sides and doors
• 38 pieces

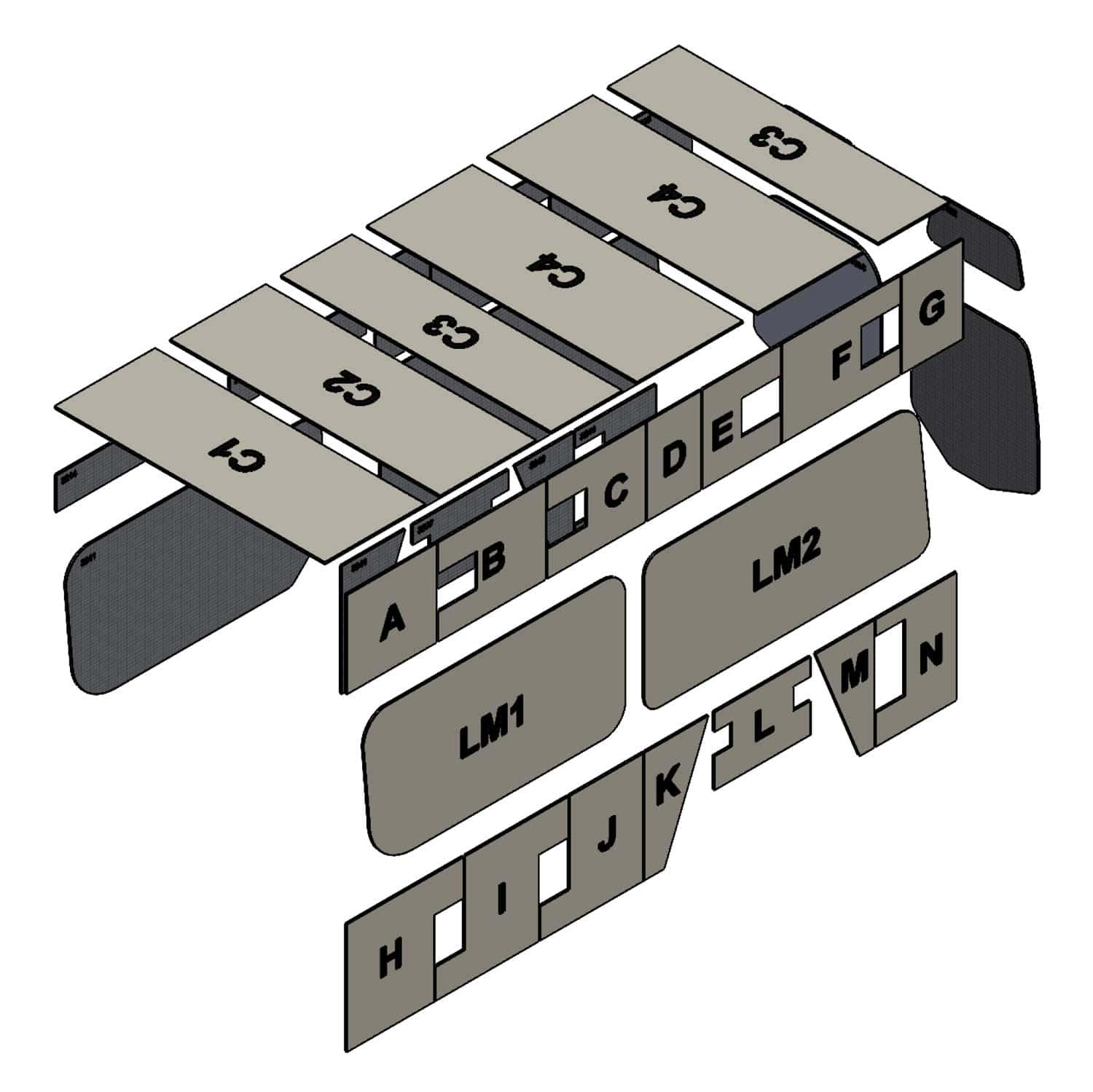

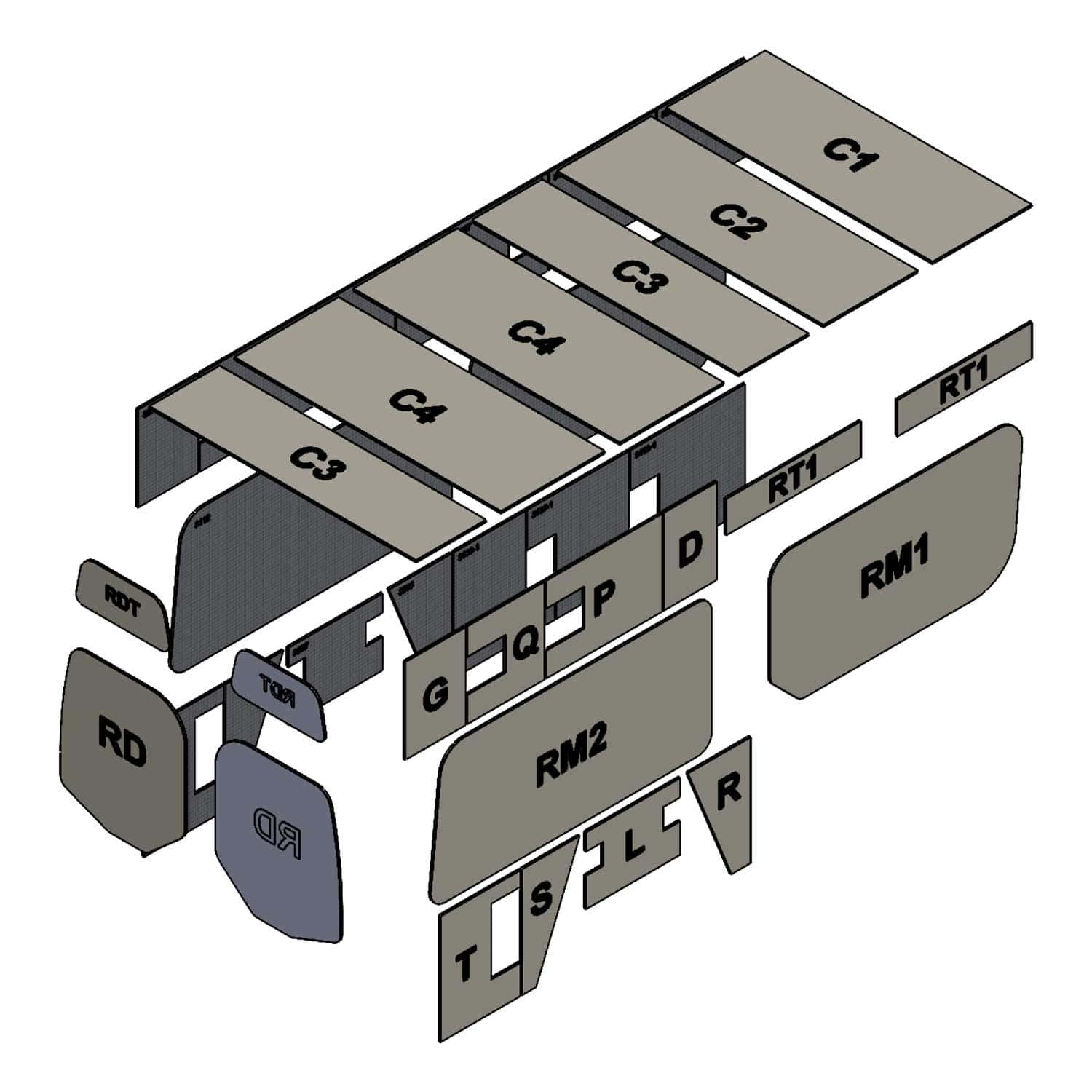

Each part is labeled with a printed alphanumeric code that indicates its specific location and position on the vehicle.
Part numbers are printed on adhesive release paper.
The release paper backing is pre-seamed for easy peel-and-stick application.
Ensure surfaces are clean, dry, and free from dirt, dust, or loose residue to allow proper adhesion.
This product can withstand installed temperatures of -40°f to 250°f.
Note: Cutouts from the upper and lower wall pieces are included. They fit inside the hollow wall structures and between each piece it was cut from.
Tip: Installing upper and lower wall pieces: Use a spray bottle with 71–90% isopropyl alcohol to wet the adhesive and easily slide pieces around and behind wall structures. The adhesive will adhere to the surface once the alcohol evaporates.
